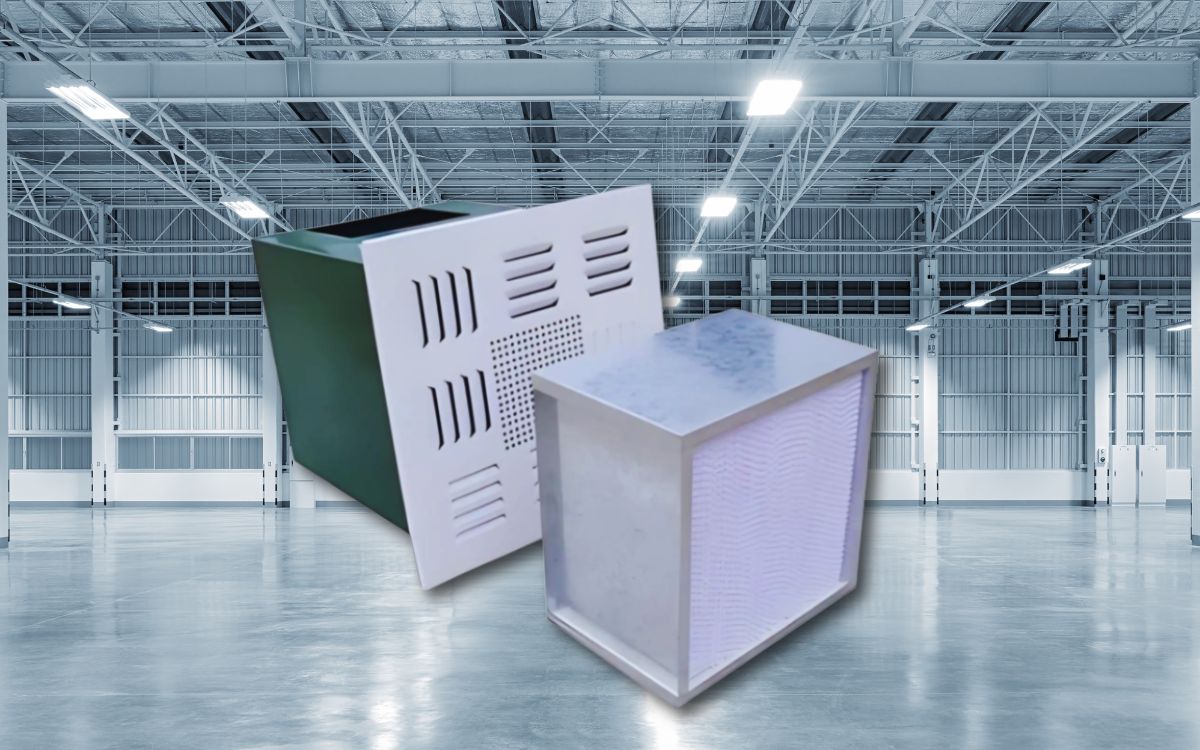

HEPA Box and common errors during installation

1. What is a HEPA Box? Its Role in Cleanroom Air Filtration Systems

A HEPA Box is the terminal device of a cleanroom air filtration system, designed to house a HEPA filter (High Efficiency Particulate Air). It is typically installed at the final air supply points before clean air is distributed into the controlled area.

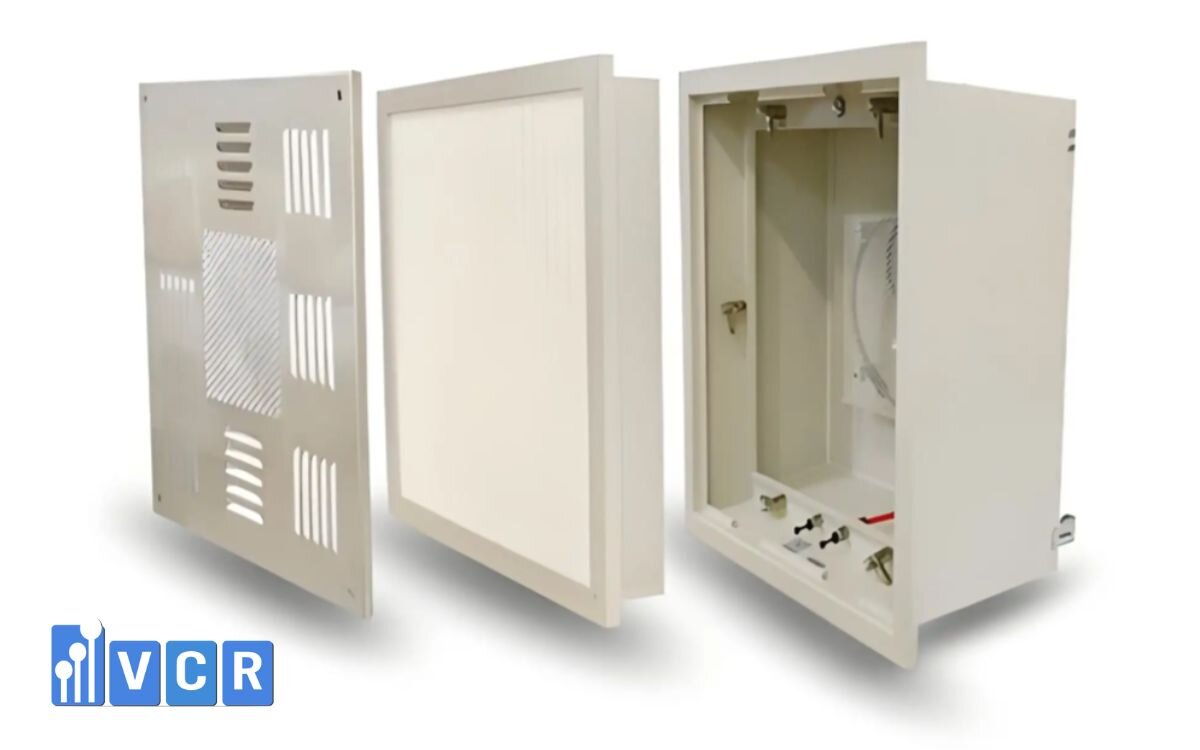

Basic Components of a HEPA Box:

• Casing made of stainless steel or powder-coated steel
• HEPA filter mounting frame
• Air duct connection (round or square)
• Air diffuser (optional)
• Some models include a pressure gauge or air damper

Applications of HEPA Box in Different Cleanroom Classes

HEPA Boxes play a crucial role in:

• Ensuring cleanliness levels that meet ISO 5-8, GMP, or equivalent standards
• Preventing fine dust, microorganisms, and unwanted gases from entering the workspace
• Distributing clean air evenly and maintaining laminar airflow

Depending on the required cleanliness level and airflow rate, HEPA Boxes are used as follows:

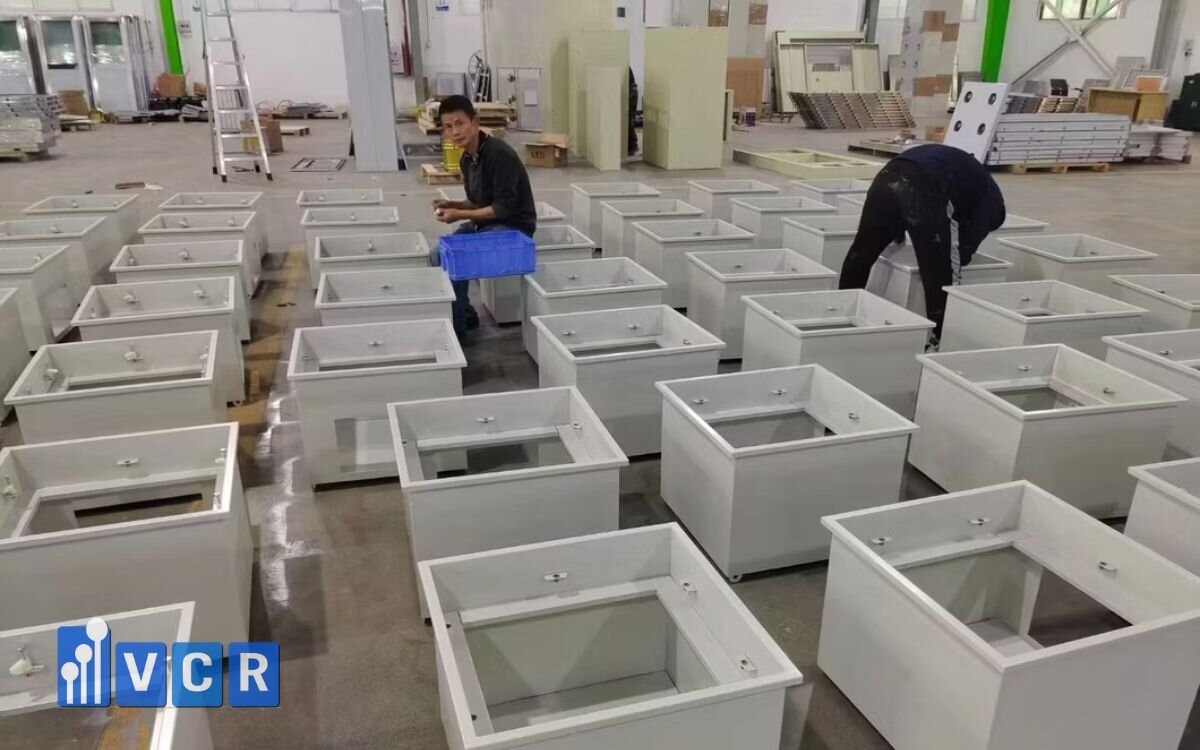

2. Common Installation Errors of HEPA Boxes and How to Fix Them

Installing a HEPA Box may seem simple, but in practice, it requires precision to ensure filtration efficiency and compliance with cleanroom standards. Below are five common mistakes engineers or contractors often make:

Error 1: Incorrect Airflow Orientation

Consequences:

• Causes airflow turbulence
• Disrupts laminar flow in the production zone
• Makes it difficult to achieve the required ISO cleanliness level

Common Causes:

• Installed too close to doors or heat-generating equipment
• HVAC layout not followed during installation

Solution:

• Identify correct airflow direction: vertical (from ceiling) or horizontal (from wall)
• Follow the approved HVAC layout drawing
• Use CFD simulation during design if possible

Error 2: Failure to Check for Leakage

Consequences:

• Unfiltered air may leak through gaps
• Contaminates the workspace with fine dust or microbes
• Leads to loss of air quality control

Solution:

• Perform leakage testing using PAO/DOP method after installation
• Seal all joints with HVAC-grade silicone
• Record test results for reference during operation

Error 3: Using the Wrong Filter Type (HEPA vs. ULPA)

Typical Cases:

• Pharmaceutical plants require H14 filters but H13 filters are installed
• Electronics cleanrooms use ULPA filters without verifying efficiency

Consequences:

• Fails to meet GMP or ISO 14644 requirements
• Risk of cross-contamination or component failure

Filter Selection Guide:

Error 4: Not Monitoring Differential Pressure

Consequences:

• Reduced filtration performance over time
• Increased system resistance and energy consumption
• Shortened equipment lifespan

Solution:

• Install a differential pressure gauge (analog or digital) on each HEPA Box
• Check regularly; replace the filter if pressure exceeds the threshold
• Integrate with the BMS system for automatic alerts if available

Error 5: Lack of Cleaning or Filter Replacement Schedule

Consequences:

• Dust buildup reduces airflow
• Microbial growth can occur, affecting product quality and operator safety
• Higher energy consumption

Recommended Maintenance Schedule:

Xem thêm: HEPA Box in Microbiology: Ensuring ISO 5 Environment

3. HEPA Box Installation Checklist

Installing a HEPA Box is more than simply attaching it to the ceiling or wall. To ensure the cleanroom operates within standards, engineers must follow a precise inspection process. The checklist below helps verify key compliance items:

Important Notes:

• Maintain complete inspection records for GMP, ISO, or HACCP audits
• Use differential pressure gauges to detect filter degradation early
• Assign a responsible technician for all air filtration validation tasks

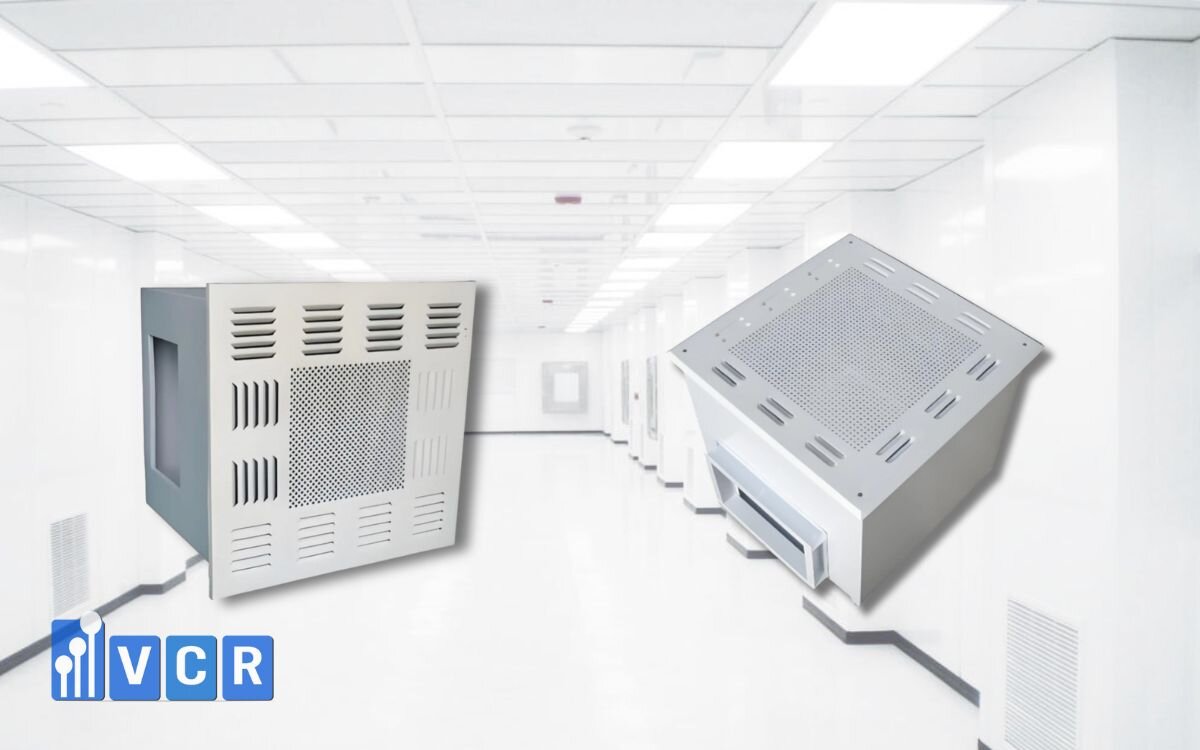

4. Suggested Applications of HEPA Box by Industry

HEPA Boxes are not just general air filtration devices for cleanrooms—they must be selected and installed according to the specific technical requirements of each industry. Below are practical application guidelines for three key sectors:

Pharmaceutical Industry - Complying with EU-GMP Standards
In pharmaceutical production, particularly in weighing, dispensing, and compounding areas, strict control of cleanliness and cross-contamination is required.

HEPA Box Applications:

• Use HEPA H14 filters with ≥99.995% efficiency
• Install in weighing rooms, airlocks, and compounding zones
• Combine with differential pressure gauges and routine PAO testing

Electronics Industry - Static and Fine Particle Control
Electronics manufacturing, especially for semiconductors and SMT components, requires ultra-clean environments (ISO 5-6) and electrostatic control.

HEPA Box Applications:

• Use both FFU and HEPA Boxes in areas requiring strict particulate control
• Prioritize HEPA H14 or ULPA filters for fine electronics production lines
• Ensure stable unidirectional airflow layout, avoiding interference from machines

Food Industry - Focus on Moisture and Hygiene Control
In food processing plants, HEPA Boxes are typically installed in areas with high risk of dust, odor, or microbial growth such as packaging, filling, and storage zones.

HEPA Box Applications:

• Select models with easy-to-replace filters, suitable for regular cleaning
• Choose powder-coated steel or stainless steel (304) casings for corrosion resistance
• Integrate with humidity control systems to prevent mold buildup inside filters

Xem thêm: How to test HEPA Box performance with DOP test

5. Frequently Asked Questions About HEPA Box Installation

1. Is there a difference between a HEPA Box and an FFU?

Yes. A HEPA Box is a terminal unit that holds a HEPA filter but requires an external air supply. An FFU (Fan Filter Unit) integrates both a fan and a HEPA filter and can operate independently. HEPA Boxes are commonly used in centralized HVAC systems, while FFUs are better suited for small-scale or retrofit cleanrooms.

2. How do I check if a HEPA Box is leaking?

The standard method is PAO/DOP leak testing. Technicians use aerosol generators and scanning devices to detect microscopic leaks that are not visible to the naked eye. This test is mandatory in pharmaceutical facilities and should be conducted every 6 months.

3. Can a HEPA Box be used in an ISO 5 cleanroom?

Yes, but it must use HEPA H14 or ULPA filters, be properly installed with correct airflow orientation, and maintain unidirectional laminar flow. In practice, ISO 5 rooms often use FFUs or dedicated AHU systems for more stable airflow control.

4. How often should HEPA filters be replaced?

Filter replacement frequency depends on industry and usage:

• Every 6-12 months for pharmaceutical and electronics sectors
• Every 12-18 months for food and cosmetics sectors
  Regular monitoring of differential pressure and filtration performance helps determine the right replacement time.

5. Can a HEPA Box be reused?

The HEPA Box casing can be reused if not damaged. However, the HEPA filter is a consumable and must be replaced according to schedule. Filters should not be washed or reused under any circumstances.
